JX-430/540/650

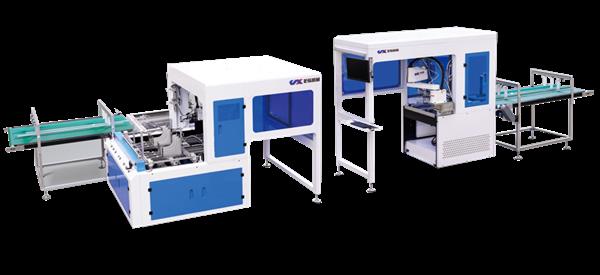

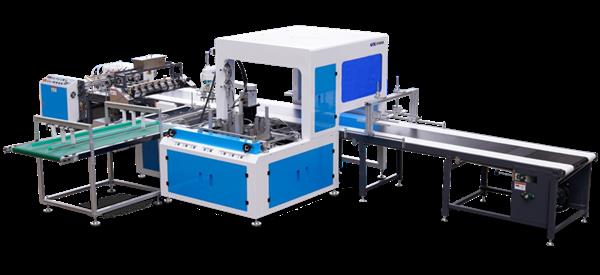

天地盖成型折入机

机器用途本机JX-430,JX-540是加工精装盒，天地盒的理想自动化设备，通过人工在流水线上将内盒和面纸定好位，再将定好位的纸盒套入机器木模上，机械自动运行；糊盒，折边，压泡一次性守成，每分钟可生产精装盒15-25个，大大提高精装盒的生产效益，节省了生产成本。因每个动作都是机械式守成；使产品标准化生产，大大提高了产品的质量 Machine Features Box wrapping machine is the ideal equipment for producinggift boxes and rigid boxes.By manually locating the inner boxand the facial paper on the assembly line,the fixed box isplaced into the machine wood mold,then automatic running；Box gluing,folding,and forming are completed at one time15-25 pieces boxes can be produced per minute,which greatlyimproves the production efficiency of the rigid box and savesproduction costs.Because each action is mechanically defensivestandardizing the production of the product.greatly improving

使用范围及特点产品参数产品样品

l 机器特点

1. 机器采用伺服气动，PLC控制。

2. 机器通过人机界面调试，简单易。

3. 机器所有控制部件均采用国际高端品牌，故障少，精度高。

4. 触摸紧急停止开关的机器，例如紧急按自动停止。

l Machine Performance

1. Machine with servo pneumatic,PLC control.

2. Machine is debugged by man-machine interface issimple and easy to adjust the selection.

3. Machine all control parts adopt internationalhigh-end brands,low failure,high precision.

4. Machine with touch the emergency stop switch,such as an emergency press automatic stop.

机器主要参数The Machine Main Parameters
型号	Model	JX-430	JX-540	JX-650
最大成品尺寸	Max box size(LxWxH)	400×300×110mm	500x400×150mm	620x520×180mm
最小成品尺寸	Min box size(Lx WxH)	35×35x8mm	80×60×10mm	80×60×10mm
速度	Speed	15-20 pcsmin	15-20 pcsmin	15-20 pcsmin
气压	Air supply	≥0.6Mpa	≥0.6Mpa	≥0.6Mpa
整机尺寸	Weight	600kg	800kg	900kg
整机重量	Dimension(L×WxH)	800×1100×2100mm	1000×1300×2300mm	1500×1200×2350mm
